在本文中，我们将学习如何在面包板上制作Arduino。我们还将看到什么是Arduino，如何对其进行编程以及如何在面包板或PCB上作为独立微控制器组装它们。
Arduino was a boon for those who wanted to learn microcontrollers and embedded system for non-engineers and beginner in microcontroller.
Before arduino came into existence, beginners had to learn microcontroller with expensive kits and some of them coded the microcontroller in Assembly language, which is a terrible language and not all understood them.
Arduino was a total game changer, which is cheap and coding can be written in higher languages like C++, and the programmer need not to be a pro in coding
什么是Arduino？（对于菜鸟）

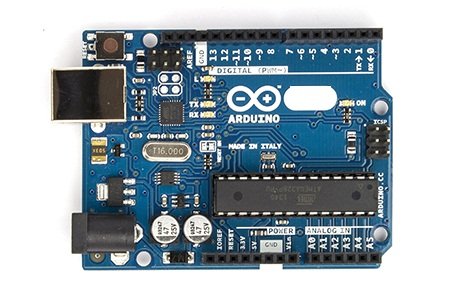

Arduino is an open source prototyping board which is made around ATmega328P; it has 14 GPIO (general purpose input output) pins, out of which 6 pins has capability to do analogue functions, all the 14 pins has the capability to digital functions.
A USB 2.0 type B placed right corner of arduino (depending on how you place) for powering and burn programs to microcontroller. A reset switch is placed left upper corner of arduino board for restarting the program within the arduino itself.
TheArduino董事会已内置程序员，通过USB将程序燃烧到Atmega328p微控制器。提供了单独的直流插孔，用于从7V到12V的外部电压源为Arduino供电（内置电压调节器）。
Arduino的一些规格：
- 操作电压：USB上的5V和DC Jack上的7-12V。
- Digital I/O pins: 14 (6 of which can do PWM operations)
- 模拟输入引脚：6
- Flash memory for storing program: 32KB
- RAM: 2KB
- EEPROM: 1KB
- 时钟速度：16MHz
- DC输出电流PIN：20mA
Note: The above specification is only applicable for ATmega328P based arduino microcontroller.
如何在面包板上做一个：
如果您的项目的原型已经完成，并且您想在项目框中永久使用它？实际上，您无需将整个笨重的Arduino板放入您的项目框中。
ATmega328P with few external components is enough to execute the program and control the peripherals that you connected with the microcontroller.
The arduino board is used to burn the program to microcontroller and provide some protection against the glitches that we make during prototyping.

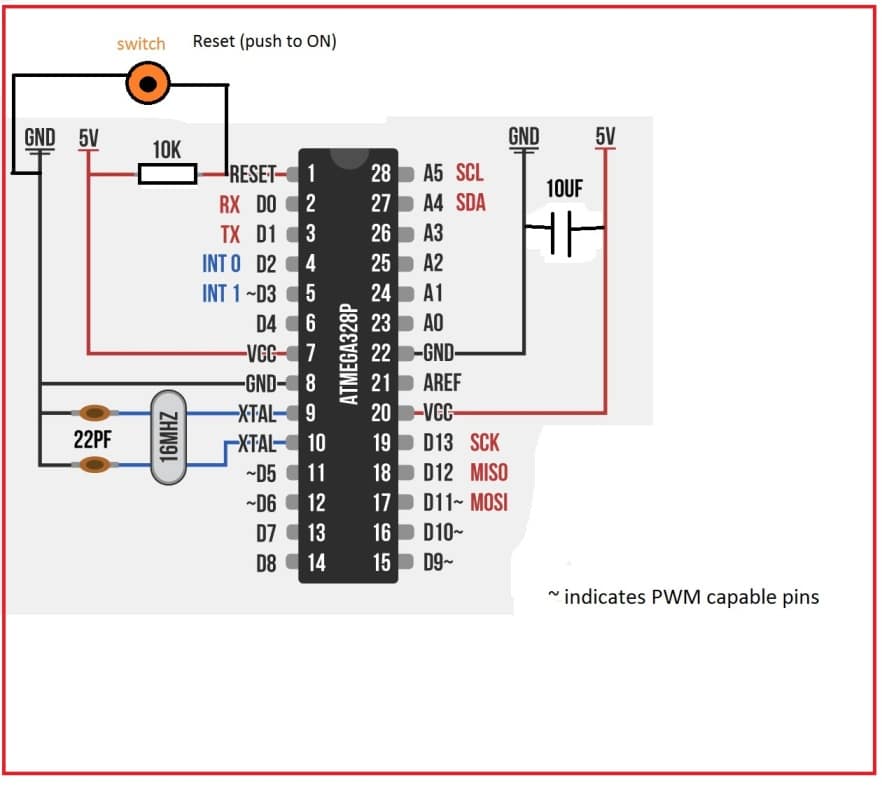

图表：
Once the project is complete you may pluck out ATmega328P and connect few external components as shown in diagram and you may solder it to PCB to make it permanent.
对于您的下一个项目，您无需购买新的Arduino董事会，而是可以购买Atmega328p和其他其他外部，它们具有成本效益，并使您的项目更加紧凑。
How to Program ATmega328P when it is on breadboard:
方法1：
Atmega328p是Arduino董事会本身，最简单，最懒惰的方式。插入Atmega328p，燃烧您的程序并将其拔出，然后将其插入您的项目。
This method is adaptable when your project has 28 pin IC holder (so that ATmega328P can be removed easily) and the ATmega328P is easily accessible.
Here is how to do it:
下载Arduino Ide Form Arduino的官方网站，然后在计算机上安装。
更新计算机上Arduino板的驱动程序（如果您使用的是基于Linux的计算机，则无需执行）。
Insert ATmega328P on arduino board in right direction and make sure it has bootloader.
Select “Tools” > “Board”> “Arduino/Genuino UNO”
Plug the arduino to your PC and select right port for your arduino (vary computer to computer. Select “Tools”> “port”).
Compile the program and click the upload button.
Remove ATmega328P and insert it on your project.
方法2：
如果你经常re-program单片机nd hardware of your project is inaccessible, then this method is best for your project, especially when ATmega328P is soldered directly on PCB.
注意：确保在进行之前断开外部电路的电源；我们将向Arduino Board供电Atmega328p。

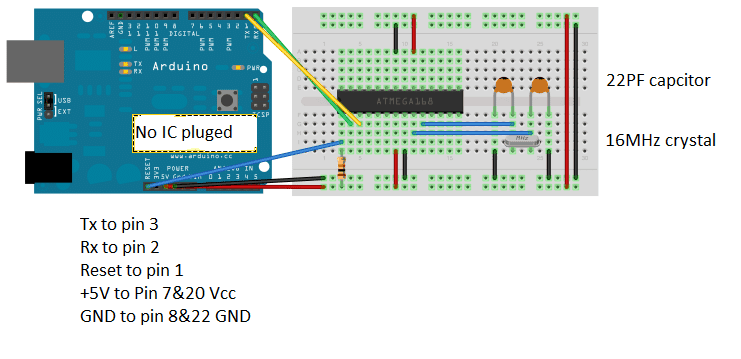

Diagram:
Select “Tools” > “Board”> “Arduino/Genuino UNO”
Plug the arduino to your PC and select right port for your arduino (vary computer to computer. Select “Tools”> “port”).
Compile the program and click the upload button.
