The purpose of this paper is to detail a variable dual lab power supply circuit which has an adjustable range from 3V, 5V, 6V, 9V, 12V, and 15V or even more at an output current rate of 1 amp.
Written By: Dhrubajyoti Biswas
双电源概念
In regard to positive volt it is preferable to use IC LM317 [-3V,-5V,-6V,-9V,-12V,-15V at 1A] and use LM337 as the negative volt. The voltage can further be controlled by S2 [+Vout] and S3 [-Vout]. The size of the transformer is set to 2A and furthermore the IC enables holding the heat sink.
However, for this development we would like to develop a dual positive power supply, ground and negative so as to experiment it in different circuits.
In addition, we can also experiment运算放大器IC - LM741, which uses the power supply voltage of +9 volts and -9 Volts. Even when we use tone control circuits or preamplifier circuit, they will use voltage supply of +15 volts and -15 volts.
Nevertheless, the circuit that we design here will be useful because a) The circuit has the capacity to enable positive voltage and even negative voltage [at 3 volts, 5 volts, 6 volts, 9 volts, 12 volts, 15 volts respectively keeping the output of the current under 1.5 amps; b)
The circuit is best to use with rotating selector switch, which will give the freedom to select the level voltage. Moreover, you won’t require any voltsmeter to measure the voltage of the output; c) The circuit is simple and the IC used for it LM317 andLM337are cheap and can be easily procured from the market.

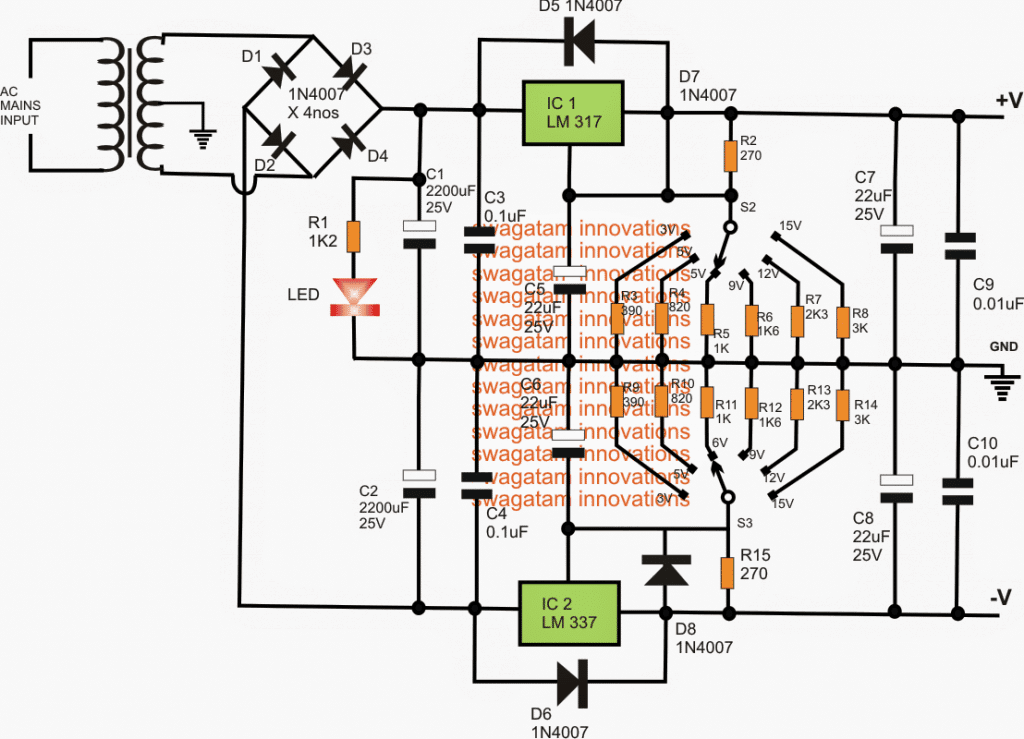

Circuit Diagram
How the circuit works
In this dual variable power supply circuit IN4001 – D3 and D4 diode acts as the full-wave rectifier. The waveform is then filtered to ease the capacitor C1 (2, 200uF).
然后，LM317T（ICI）的输入起作用以在正模式下调节IC。此外，它还调整了1.2-37伏特的电压，并使最大电流输出提供1.5安培。
点要注意
- The output of the voltage can alter because of the value of change in Resistor R2 and further alters R3 to R8. This is accomplished by S2 selector switch and you can choose the resistance as per your need, in order to gain the voltage level from 3, 5, 6, 9, 12 and 15 volts.
- The C2 (22uF) measured with high impedance and further reduces to transient on the output of ICI-LM317T.
- The C3 (0.1uF) capacitor is used when IC1 is installed keeping distance from C1.
- The C5 (22uF) capacitor, before being amplified and as the output of the voltage goes up acts as ripple signal.
- The C9 capacitor is used to low down the ripple in the output.
——D5和D7二极管(IN4001)电路sed to protect IC1 from the discharge of C7 and C5, in situation when the input is in short circuit.
- 关于负模式，它遵循类似的原理，例如正模式。在这里，D1，D2是整流器全波的模型中的整流二极管。IC IC2-LM337T受负直流调节。
Aforesaid is the process to develop an adjustable dual power supply. However, if you need the voltage to be variable in nature [for instance, 4.5V,7.5V,13V et al], simply add the VR1 in IC1-LM317 and IC2- LM337 pin.
If a rotary switch is used instead of a potentiometer, as shown in the diagram, make sure to use a rotary switch having a "make before break " feature which will ensure that while operating the rotary switch, the output does not swing to the maximum voltage level during the split second transitional disconnection of the switch contacts. The "make before break" feature is specially designed to prevent such situations from occurring.
Calculating the Resistor Values:
The values of the various fixed resistors could be calculated either through thiscalculator softwareor using the following formula:
VO= VREF(1 + R2 / R1) + (IADJ×R2）
其中r1 = 270欧姆如图所示，r2 =与旋转开关连接的单个电阻，vREF= 1.25
For most applications IADJcould be simply ignored since it's value will be too small.
另一个LM317简单的双电源电路

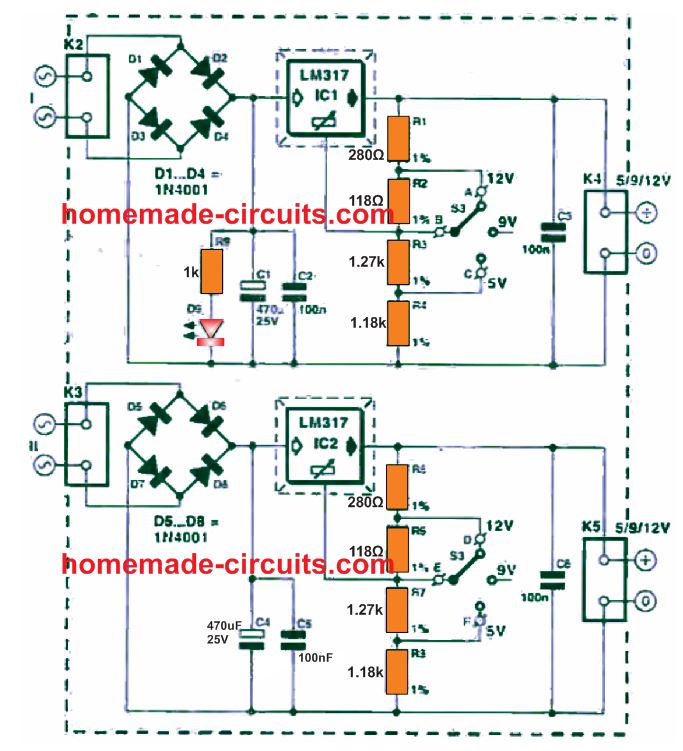

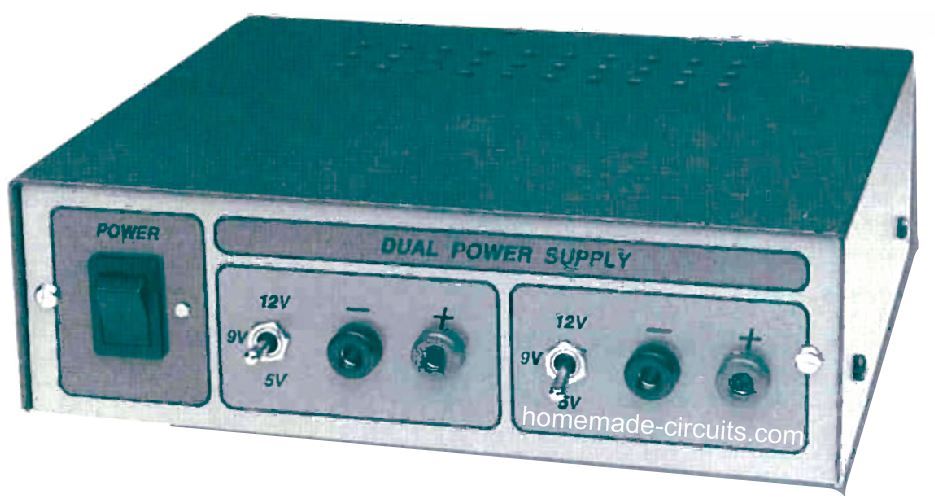

The diagram above shows how a simple yet higher versatile, adjustable dual power supply circuit could be built through just a couple of LM317 ICs. The circuit will produce an adjustable dual supply of 12V, 5V, and 9V
It means, an effective variable dual supply output could be achieved by using readily available IC like LM317, which is very easily accessible in any electronic market.
The design employs a couple of identical LM317 variable regulator circuits driven through separate bridge rectifiers and AC inputs from the transformers.
This allows us to join the + and - of the two supplies to create a dual supply of our own choice as per specific requirements.
考虑到将输出电压调整为3个变量范围应该可以实现，因此，施加的电压调节器是一种可以使用少数电阻器来固定的，如电路图所示。使用公式确定输出电压
Uout = 1.25(1+R2/R1) + IadjR2, in which 1.25 signifies the reference voltage of the IC, and ladj indicates the current moving through the 'ADJ(ust)' pin of the device towards ground.
The IC LM317 has internal compartaors, which constantly analyzes portion of the output voltage, fixed by resistive divider R1/R2, with the reference voltage. In the event that Uout is required to be higher; the comparator output is switched high which forces, the internal transistors to conduct harder.
This action decreases the collector-emitter resistance, causing a boost in the Uout. This set up guarantees a practically constant Uout. Practically , the value of Iadj falls between 50 µA and 100 µA. Due to this lower value, the factor Iadj R2, could typically be removed from the formula. Therefore, the refined formula
UOUT = 1.25 [1+（1270+1280）280] = 12.19 V.

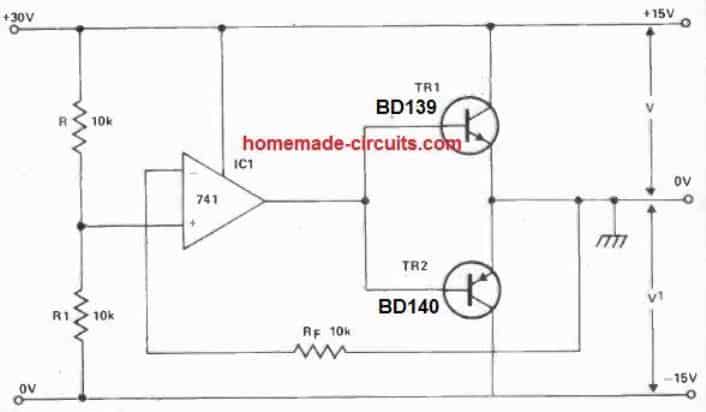

Precision Dual Voltage Power Supply
该电路具有比标准2固定电压隔板的好处，其中电压评分V：V不依赖于从中流的电流。电阻r：r1的比率确定电压比。
The OP-AMP identifies any change in this ratio via Rf并迅速执行校正。实际的签证官ltages utilized will be limited by the upper and lower operating voltages of the OP AMP. The circuit shown was developed to deliver +15 V, -15V dual supply, specifically for the operational amplifiers.

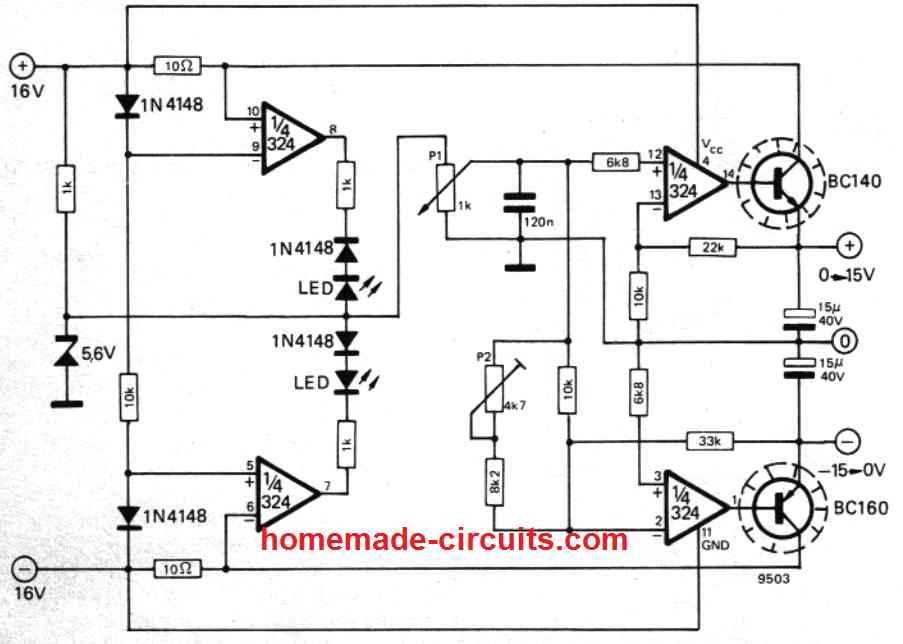

Balanced Power Supply using LM324
This stream-lined balanced power supply utilizes the 4 opamps from one LM324 IC. These are employed to stabilize the output voltage and also to control the output current. The current limiter circuit is defined at 60 mA and consists of lowest number of parts.
It has to be taken into account that under certain situations it might appear that the (input) power supply of only ±16 V is actually very low. However, the highest output voltage is determined by the specifications of the IC employed. It is far from safe to raise the input supply voltage; any kind of rise in the voltage could destroy the IC, depending on its maximum input voltage tolerating specifications.
A 5.6 V zener diode is employed for fixing the reference voltage. The zener value is not really crucial; if it is small, the output voltage is going to be a bit lower.
P1 works like the voltage adjustment pot simultaneously for controlling both the +15 and -15 supplies. Using P1, the reference voltage gets broken down and is given to the + input pinout of the (upper) opamp.
This particular opamp manages the positive output voltage by governing the base current of the series regulating transistor (BC140). The stabilization of the output voltage is influenced through a negative feedback loop through a voltage divider network composed of the 22 k and 10 k resistors.
The regulation of the negative voltage tends to be relatively more complex. The + input pinout of the lower opamp is coupled to the zero voltage '0', by means of a 6k8 resistor.
参考电压通过控制锅P1以及带有输入引脚的各种零件使用。负输出电压相对于通过33 K和10 K电阻建立的电压分隔器“ See -SAW”网络（通过修剪电路桥接在一起），相对于正参考电压平衡。
修剪预设控制器P2取消电路元件中小公差的影响，并且可以调整P2以平衡正极和负输出电压。超过当前的安全性是由IC中的几个剩余的操作员实现的。
In case the voltage difference across one of the 10 ohm resistors becomes greater than 0.6 V, the reference voltage is going to decrease to zero and, as a result, the output voltages also reduces along with it. Simultaneously the LED's illuminate to show that the protection feature of the circuit is working.

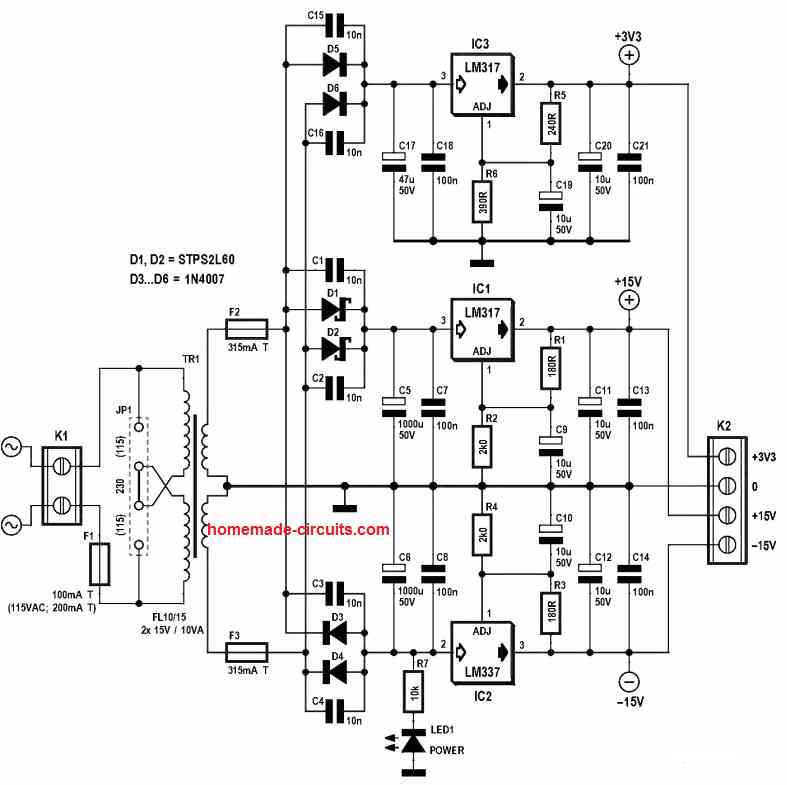

另一个简单的3V至 +15V，-15V双电源电路
下图显示了另一个简单的双电源电路，该电路可以自定义以在3V和15V之间获得任何双电压。这
By appropriately changing the values of the resistors R2, and R4 resistors it may be possible to alter the output from anywhere between 3V, 4.5V, 6V, 9V, 12V, 15V dual supplies.

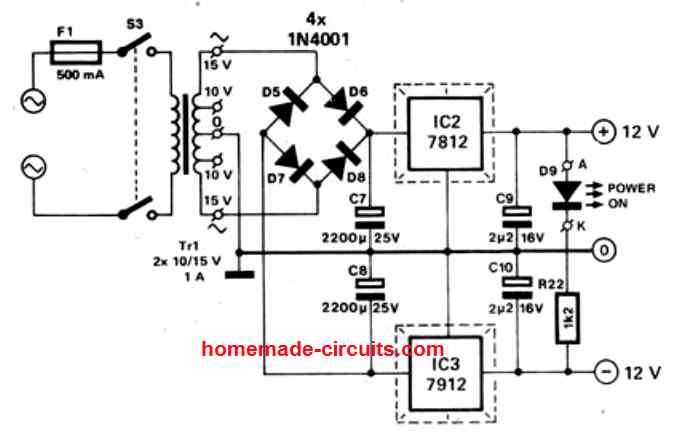

对于固定的双电源，您可以使用以下配置。在这里，我们可以看到，对于正供应，使用了IC 7812，对于负供应，已使用IC 7912：

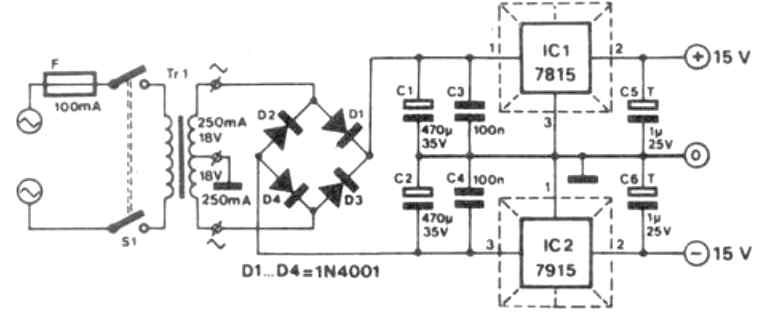

Dual Power supply circuit using IC 7815 and IC 7915
